Product Parameters:
Model: YTLG-12BN-80
Specification: Cap type
Freeze dried area: 0.08m 2
Bottled volume of penicillin: φ 12mm: 560
φ16mm：285
Φ22mm ：165
Cold trap temperature: -80 ℃ (unloaded, room temperature ≤ 28 ℃)
Capture water volume: 4kg/batch
Standard vacuum degree: ≤5Pa (no load)
Ultimate vacuum degree: 2PA
Material tray: 3 layers with a diameter of 180mm
(Active layer)
Overall power: 1050W, standard vacuum pump 370W (-80 ℃)
Host weight:/
Host dimensions:/
Operating noise of the whole machine: ≤ 55dB
Power supply: AC220V 50HZ/optional 110V 50HZ
Vacuum pump: standard 2XZ-2 vacuum pump/optional imported vacuum pump
- Product Details
- Product manual

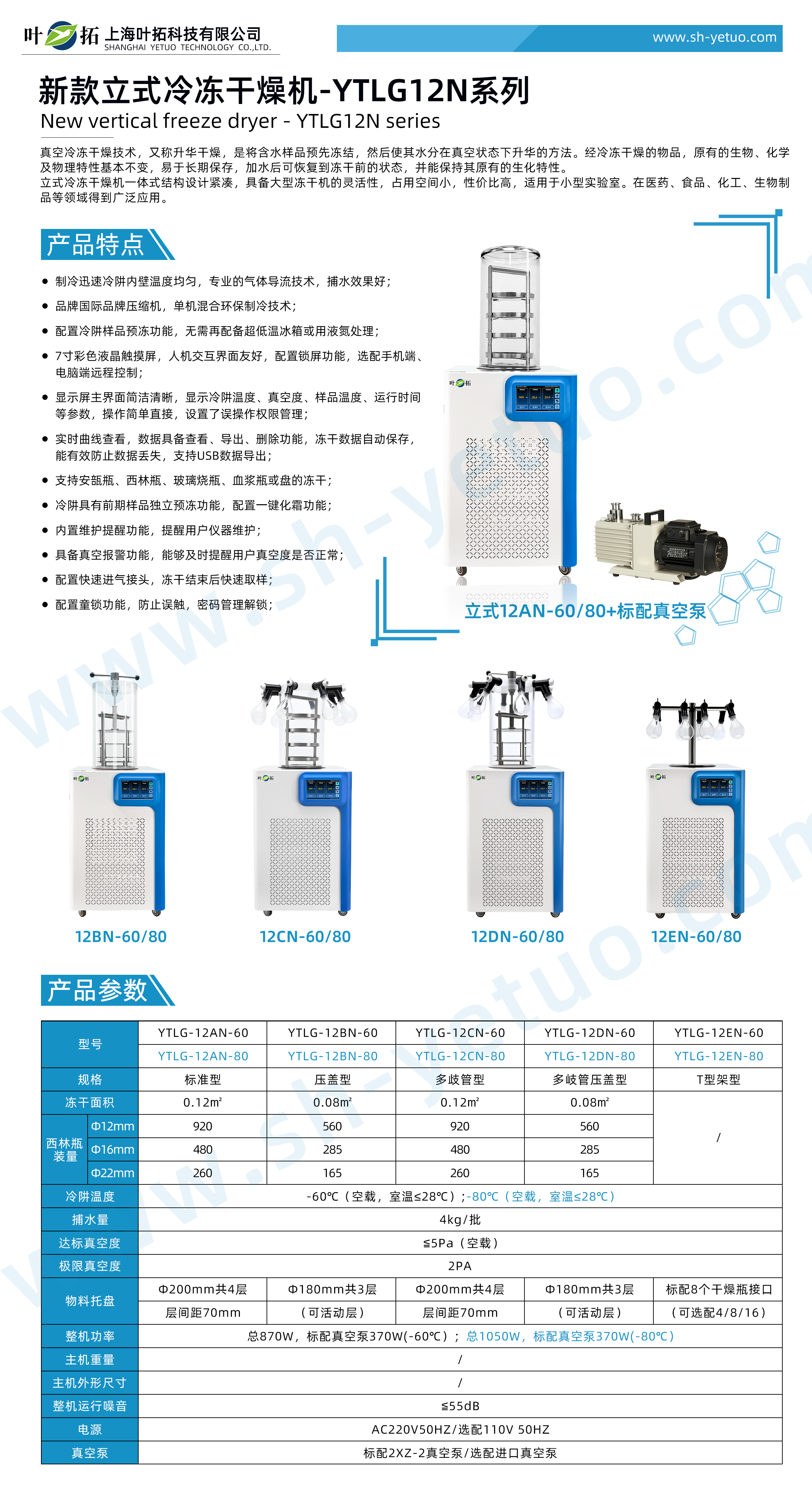

YTLG-12BN-80 new vertical freeze dryer from Yetuo
Model: YTLG-12BN-80
Product Overview:
Vacuum freeze-drying technology, also known as sublimation drying, is a method of pre freezing a water containing sample and then sublimating its moisture in a vacuum state. After freeze-drying, the original biological, chemical, and physical properties of the item remain largely unchanged, making it easy to store for a long time. Adding water can restore it to its pre freeze-drying state and maintain its original biochemical properties.
The integrated structure design of the vertical freeze dryer is compact, with the flexibility of a large freeze dryer, small space occupation, high cost-effectiveness, and suitable for small laboratories. Widely used in fields such as medicine, food, chemical, and biological products.
Product Features of YTLG-12BN-80 New Vertical Freeze Drying Machine by Yetuo
Rapid refrigeration, uniform temperature on the inner wall of the cold trap, professional gas flow guidance technology, and good water capture effect;
Brand international brand compressor, single machine hybrid environmentally friendly refrigeration technology;
Configure the cold trap sample pre freezing function, without the need for an ultra-low temperature refrigerator or liquid nitrogen treatment;
7-inch color LCD touch screen, user-friendly human-computer interaction interface, equipped with lock screen function, optional remote control on mobile phone and computer;
The main interface of the display screen is simple and clear, displaying parameters such as cold trap temperature, vacuum degree, sample temperature, running time, etc. The operation is simple and direct, and the misoperation permission management is set;
Real time curve viewing, with functions for viewing, exporting, and deleting data. Freeze dried data is automatically saved to effectively prevent data loss and supports USB data export;
● Support freeze-drying of ampoules, penicillin bottles, glass flasks, plasma bottles or plates;
The cold trap has an independent pre freezing function for the initial sample and is equipped with a one click defrosting function;
● Built in maintenance reminder function, reminding users of instrument maintenance;
Equipped with vacuum alarm function, it can promptly remind users whether the vacuum degree is normal;
● Configure a quick intake connector for quick sampling after freeze-drying is complete;
Configure room lock function to prevent accidental touch and unlock password management;
