Product Parameters:
Instrument model: YHYG-B (double-layer single door)
Oscillation frequency: 20~300 revolutions per minute
Amplitude: 26mm
Maximum capacity (single-layer): 1000mlx21 or 500mlx36 or 250mlx55 (fixed fixture)
Standard configuration: Universal spring mesh frame
Tray size (mm): 1020x480 (mm) (double-layer)
Timing range: 0-999 minutes/hour
Constant temperature range: 4 ℃~60 ° C (at room temperature of 23~25 ℃)
Constant temperature accuracy: ± 0.1 ℃
Temperature uniformity: ± 0.5 ℃
Digital display mode: LCD
Input power: 1600W
Dimensions (mm): 1200x750x1530 (mm)
Weight: 290kg
Power supply: 220V 50Hz
Lighting: 24W
Capacity: 460L
Note: The intelligent temperature controller used in this machine can be set by users according to the instructions to improve the overshoot and other problems caused by different climate conditions in the south and north
- Product Details
- Product manual

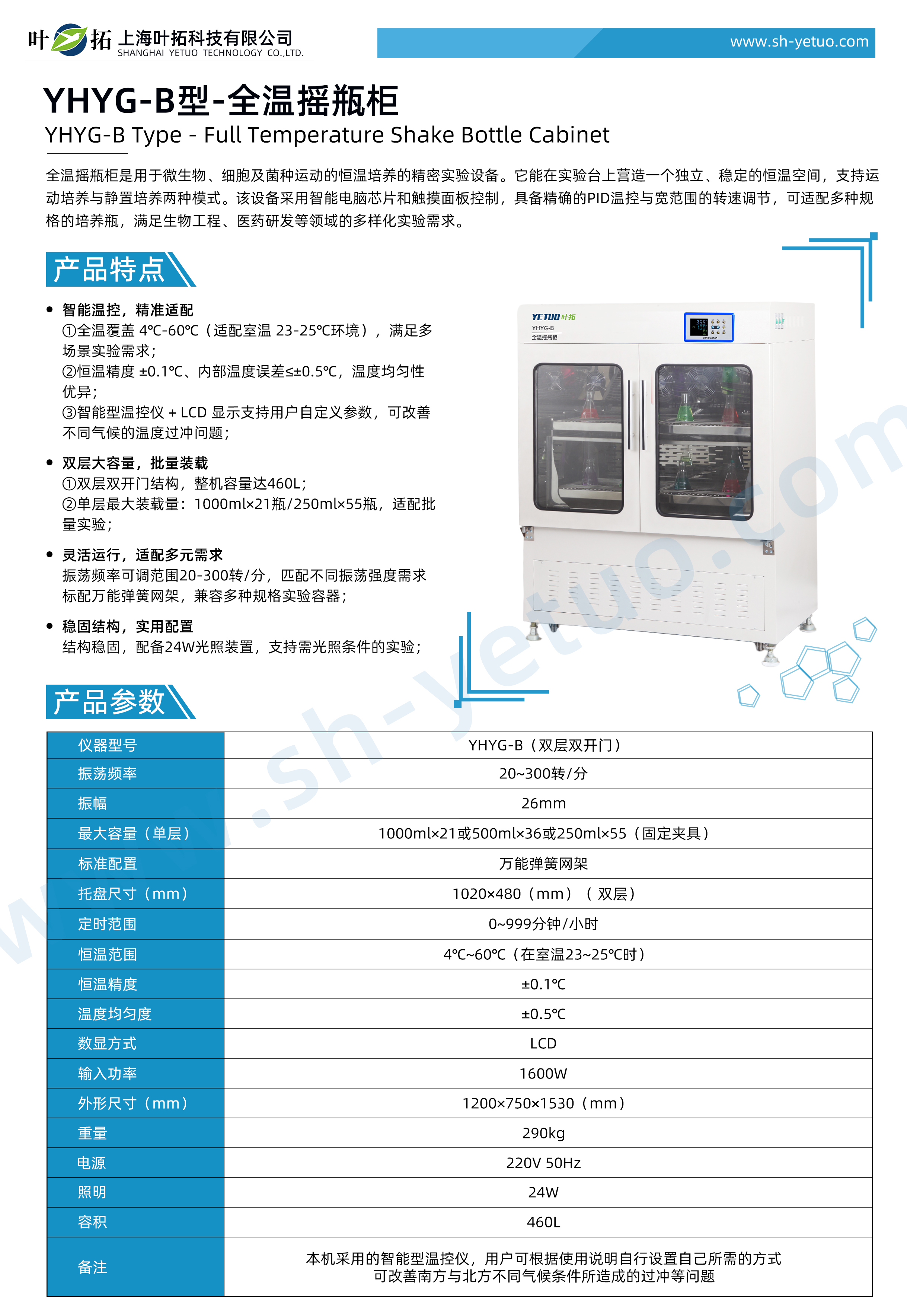

Yetuo YHYG-B Full Temperature Shake Bottle Cabinet
Model: YHYG-B
Product Overview:
The full temperature shaking bottle cabinet is a precision experimental equipment used for constant temperature cultivation of microorganisms, cells, and bacterial strains. It can create an independent and stable constant temperature space on the experimental bench, supporting both motion cultivation and static cultivation modes. This device is controlled by intelligent computer chips and touch panels, with precise PID temperature control and wide range speed adjustment. It can adapt to various specifications of culture bottles and meet the diverse experimental needs of fields such as biotechnology and pharmaceutical research and development.
Product Features of Yetuo YHYG-B Full Temperature Shake Bottle Cabinet
Intelligent temperature control, precise adaptation
① Full temperature coverage of 4 ℃ -60 ℃ (suitable for room temperature environment of 23-25 ℃), meeting the needs of multi scenario experiments;
② Constant temperature accuracy ± 0.1 ℃, internal temperature error ≤ ± 0.5 ℃, excellent temperature uniformity;
③ Intelligent temperature controller+LCD display supports user-defined parameters, which can improve temperature overshoot problems in different climates;
● Double layered large capacity, batch loading
① Double layered single door structure, with a total capacity of 460L;
② Single layer maximum loading capacity: 1000ml x 21 bottles/250ml x 55 bottles, suitable for routine batch experiments;
● Flexible operation, adaptable to diverse needs
The oscillation frequency can be adjusted within the range of 20-300 revolutions per minute, and it is equipped with a universal spring mesh frame to match different oscillation intensity requirements. It is compatible with various specifications of experimental containers;
● Stable structure, practical configuration
Stable structure, equipped with a 24W lighting device, supporting experiments that require lighting conditions;
