Product parameters:
Product model: YT-LD-48
Sample size processing: 48 * (0.2-0.5ML)/48 * 2ML/12 * (5-15) ml/4 * 25ml/2 * 50ml
Various specifications of grinding tubes can be customized for grinding methods
Grinding methods: wet grinding, dry grinding, low-temperature grinding are all acceptable
Grinding kit material: hard rigid, polytetrafluoroethylene (PTFE) zirconia
Noise level:<55dB
Adapter material: PTFE or alloy steel
Acceleration/deceleration: reach high/low speed within 2 seconds
Feed size: No requirements, adjust according to adapter
Cooling function: Yes, adjustable from -50 ° C to 37 ° C
Refrigeration capacity: capable of upgrading to ultra-low temperature liquid nitrogen freezing or air refrigeration machines for refrigeration
Temperature control accuracy:+0.5 ° C
Size/Weight: 700x380x500mm; 58kg
Discharge particle size:~5 μ m
Number of grinding platforms:>2 (number of grinding tanks that can be accepted)
Homogenization speed and time: 0-70 HZ/second; Working time: 0 seconds to 9999 minutes, users can set it themselves
Grinding ball diameter: 0.1-30mm
Grinding ball materials: alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand
- Product Details
- Product manual

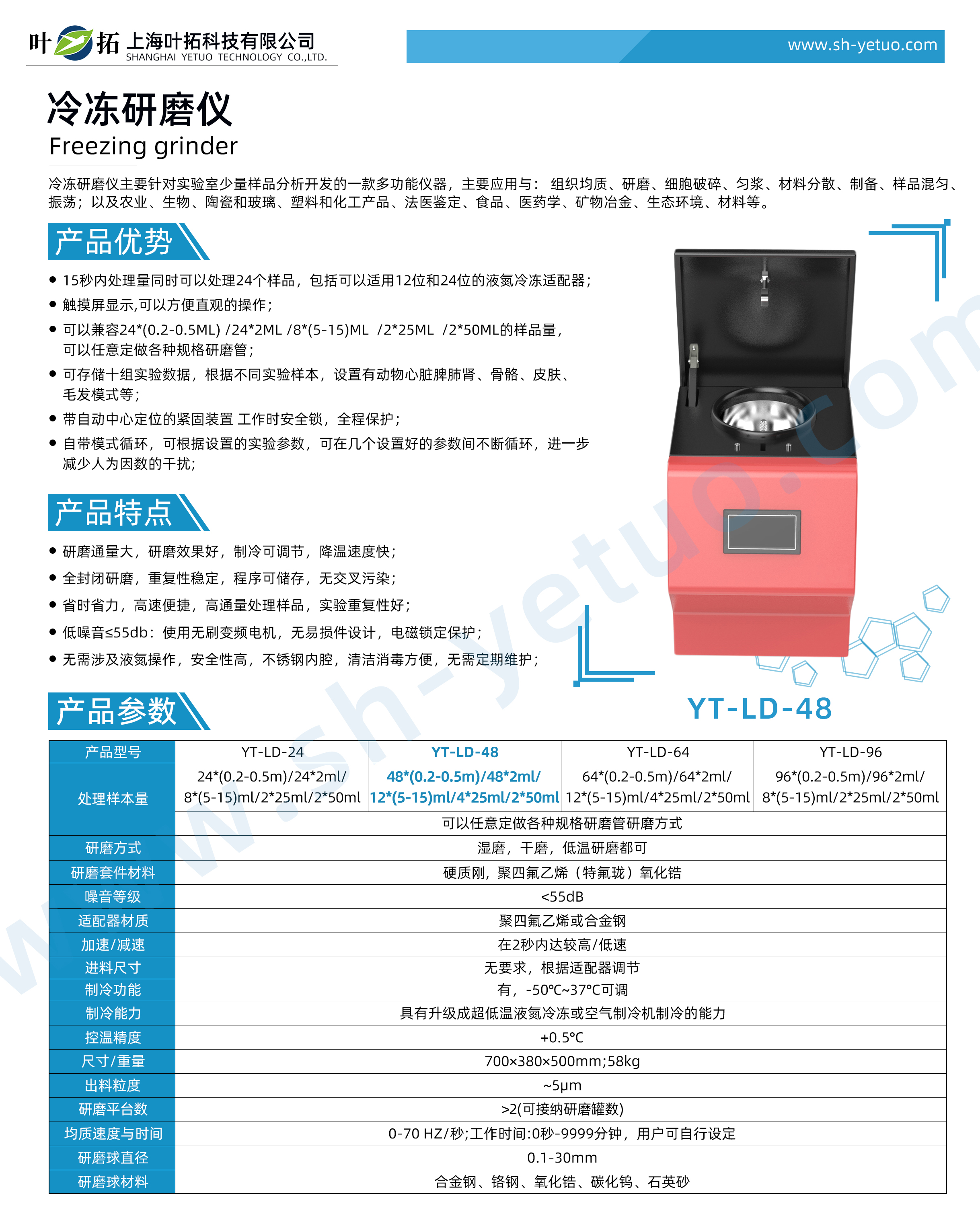

YT-LD-48 cryogenic grinder from Yetuo
Model: YT-LD-48
Product Overview:
The cryogenic grinder is a multifunctional instrument mainly developed for the analysis of small amounts of laboratory samples. It is mainly used for tissue homogenization, grinding, cell fragmentation, homogenization, material dispersion, preparation, sample mixing, and oscillation; And agriculture, biology, ceramics and glass, plastics and chemical products, forensic identification, food, medicine, mineral metallurgy, ecological environment, materials, etc.
Product advantages of YT-LD-48 cryogenic grinder from Yetuo
Within 15 seconds, the processing capacity can handle 24 samples simultaneously, including liquid nitrogen freezing adapters that can be used for both 12 and 24 positions; ● Touch screen display for convenient and intuitive operation;
● Compatible with sample sizes of 24 (0.2-0.5ML)/24 * 2ML/8 * (5-15) ML/2 * 25ML/2 * 50ML, and can be customized with various specifications of grinding tubes;
● Can store ten sets of experimental data, with animal heart, spleen, lungs, kidneys, bones, skin and hair patterns set according to different experimental samples;
The fastening device with automatic center positioning is equipped with a safety lock during operation, providing full protection throughout the process;
Equipped with a built-in mode loop, it can continuously loop between several pre-set parameters according to the set experimental parameters, further reducing the interference of human factors;
Product features of YTLD-48 cryogenic grinder from Yetuo
● High grinding flux, good grinding effect, adjustable cooling, fast cooling speed;
Fully enclosed grinding, stable repeatability, storable program, no cross contamination;
Time and effort saving, high-speed and convenient, high-throughput sample processing, good experimental repeatability;
Low noise ≤ 55db: using brushless variable frequency motor, no vulnerable parts design, electromagnetic locking protection;
No need for liquid nitrogen operation, high safety, stainless steel inner cavity, easy cleaning and disinfection, no need for regular maintenance;
