Model: YTUP60E
System water production (25 ℃): 60 (L/H)
Water intake flow rate: 1.5-2L/min
Inlet requirements: TDS<300ppm for urban tap water, water pressure 1-5kg/c ㎡
UP Ultra Pure Water Index
Electrical resistivity:>18.25M Ω· cm (25 ℃)
Conductivity:<0.057 μ s/cm (25 ℃)
Heavy metal ions:<0.01ppb
Total Organic Carbon (TOC):<10pppb
Heat source/endotoxin: N/A
Microbial bacteria:<0.1 CFU/ml
Ribonuclease: N/A
Deoxyribonuclease: N/A
Particulate matter (>0.22 μ m):<1/ml
RO reverse osmosis water index
TDS value: RO water TDS (total solid solubility, ppm)<influent TDSx1% (desalination rate>99%)
Divalent ion separation rate:>99% (when using a new RO membrane)
Organic separation rate:>99%, when MW>200 Dalton
Inorganic ion retention rate: 98-99% (when using a new RO membrane)
Soluble organic matter retention rate:>99% (MW>300 Dalton)
Particle and bacterial separation rate:>99%
Maximum water production of reverse osmosis: 2.0 liters/minute (with pressure tank open)
Work pressure monitoring: 0-1Mpa, 0-150PSI
Digital water quality monitoring: Conductivity TDS testing pen+LCD online resistivity, conductivity, TDS, water temperature monitoring
Instrument size: 390x510x555mm
Gross weight: 33kg
Power supply/power: 100-240V, 50-60Hz/120W
Standard configuration: 1 set of host, 1 set of built-in purification system, 1 2.5-liter pressure pure water tank, and 1 terminal filter (with a pore size of 0.22um)
- Product Details
- Product manual

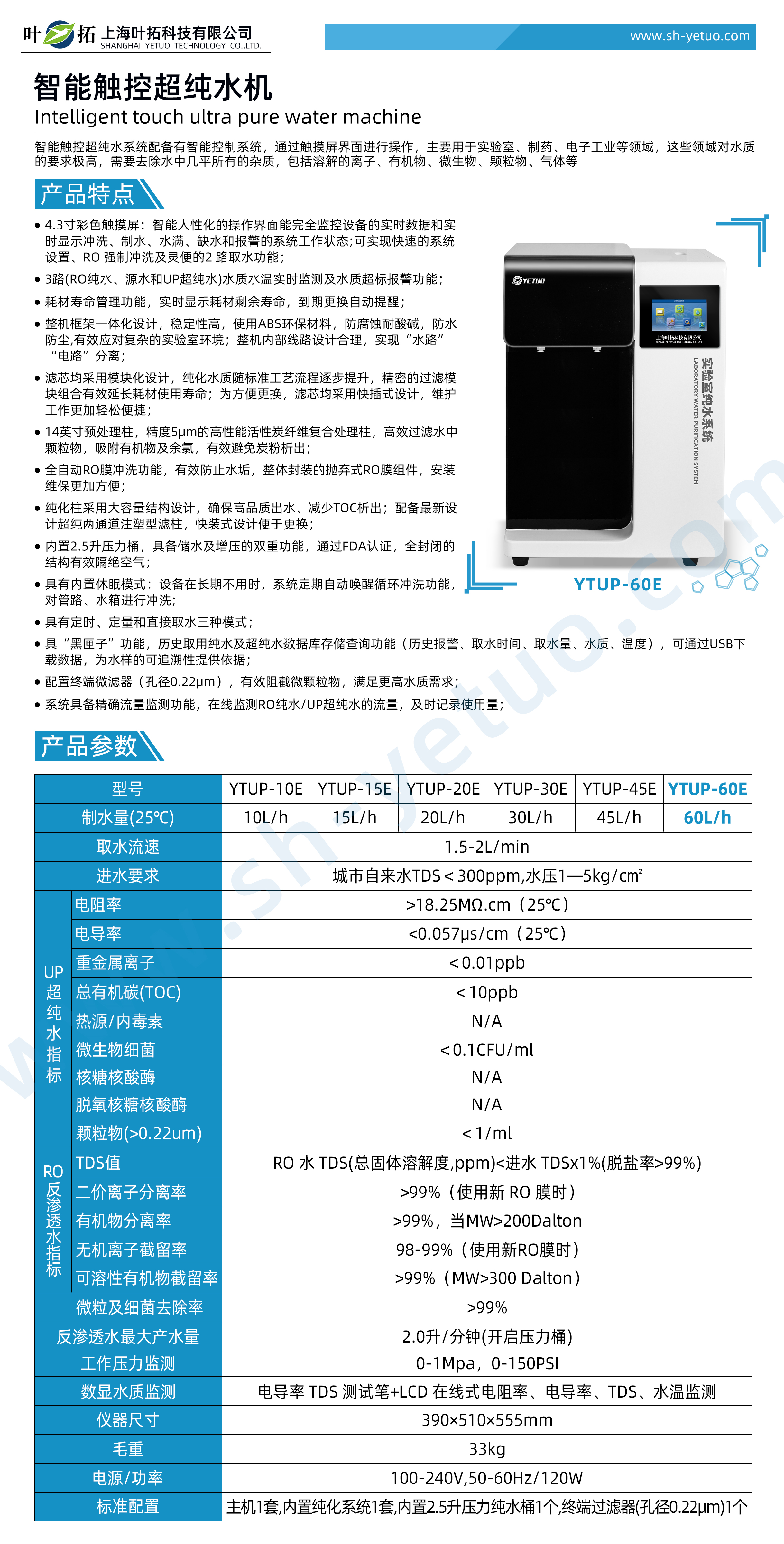

Yetuo YTUP60E Intelligent Ultra Pure Water Machine
Model: YTUP60E
Product Overview:
The intelligent touch ultra pure water system is equipped with an intelligent control system and operated through a touch screen interface. It is mainly used in fields such as laboratories, pharmaceuticals, and electronics industries, which have extremely high requirements for water quality and need to remove all impurities in the water, including dissolved ions, organic matter, microorganisms, particulate matter, gases, etc.
Product Features of Yetuo YTUP60E Intelligent Ultra Pure Water Machine
4.3-inch color touch screen: The intelligent and user-friendly operation interface can fully monitor the real-time data of the equipment and display the system working status of flushing, water production, water full, water shortage, and alarm in real time; It can achieve fast system settings, RO forced flushing, and convenient two-way water intake function;
Real time monitoring of water quality and temperature for 3 channels (RO pure water, source water, and UP ultra pure water), as well as alarm function for water quality exceeding the standard;
● Consumable life management function, real-time display of remaining consumable life, automatic reminder for replacement upon expiration;
Integrated design of the entire machine frame, high stability, using ABS environmentally friendly materials, anti-corrosion, acid and alkali resistance, waterproof and dustproof, effectively coping with complex laboratory environments; The internal circuit design of the whole machine is reasonable and practical
Separation of "waterway" and "circuit";
The filter elements are designed with modularity, and the purified water quality gradually improves with the standard process flow. The precise combination of filtration modules effectively extends the service life of consumables; For the convenience of replacement, the filter elements are all quick insert
Style design makes maintenance work easier and more convenient;
14 inch pretreatment column, high-performance activated carbon fiber composite treatment column with an accuracy of 5 μ m, efficiently filters particulate matter in water, adsorbs organic matter and residual chlorine, and effectively avoids carbon powder precipitation;
The fully automatic RO membrane flushing function effectively prevents scale buildup, and the disposable RO membrane module packaged as a whole makes installation and maintenance more convenient;
The purification column adopts a large capacity structural design to ensure high-quality effluent and reduce TOC precipitation; Equipped with the latest design of ultra pure two channel injection molded filter column, the quick installation design is easy to replace;
Built in 2.5-liter pressure tank, with dual functions of water storage and pressurization, certified by FDA, fully enclosed structure effectively isolates air;
● Equipped with built-in sleep mode: When the device is not in use for a long time, the system will automatically wake up the cycle flushing function regularly to flush the pipelines and water tanks;
● It has three modes: timed, quantitative, and direct water intake;
Equipped with a "black box" function, it has the ability to store and query historical records of pure water and ultrapure water databases (including historical alarms, water intake time, water volume, water quality, and temperature), and can download data via USB,
Provide a basis for the traceability of water samples;
Configure a terminal microfilter (with a pore size of 0.22 μ m) to effectively intercept micro particles and meet higher water quality requirements;
The system has precise flow monitoring function, which can monitor the flow of RO pure water/UP ultrapure water online and record the usage in a timely manner;
